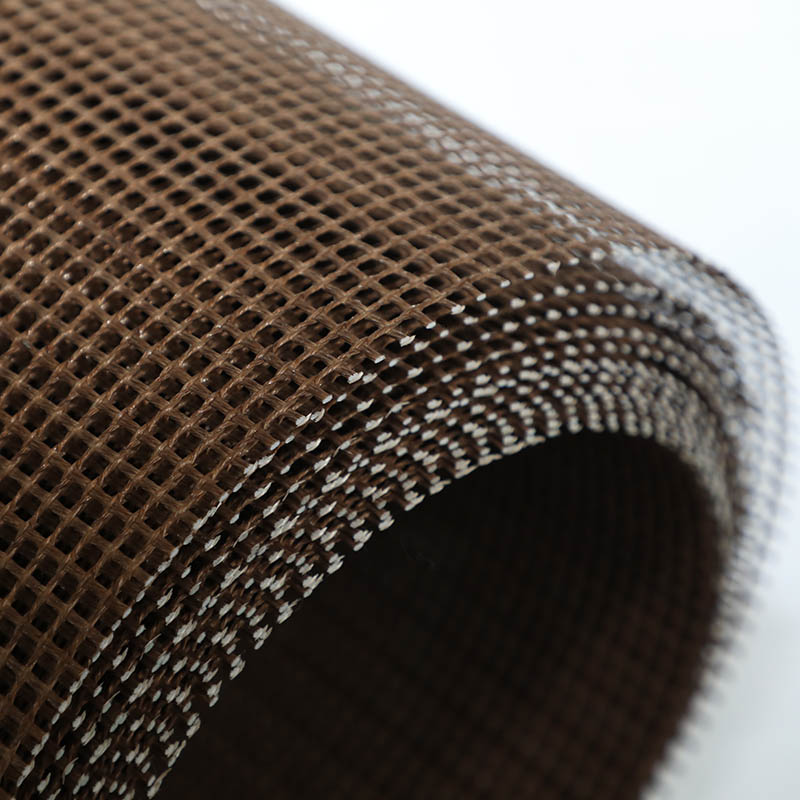

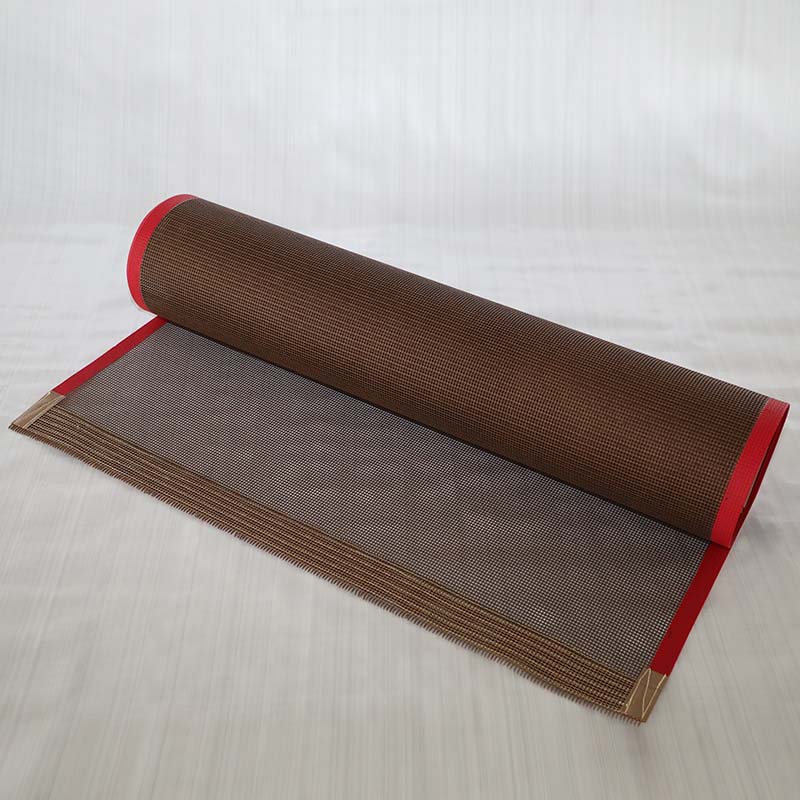

Drying equipment PTFE mesh conveyor belt

Product Performance：

1. Temperature resistance from -70°C to +260°C.

2. Non-stick surface, easy to clean.

3. Chemical resistance. Be resistant to various organic solvent.

4. Good stability in size, high strength, good mechanical performance.

5. Bending fatigue resistance, and can be used on smaller wheel.

6. Non-toxic, and can resist almost all pharmaceutical products.

7. Fire Proof.

8. Air permeability of the conveyor belt can reduce the heat-consuming, and improve the drying efficiency.

Product Application：

1. Textile and dyeing: drying for textile printing, dyeing, shrinking, non-woven fabric, and in industry oven.

2. The loose-dryer, offset, UV curing machine, paper oil drying, UV drying, plastic printing drying.

3. High-frequency wave drying, microwave drying, food refrigeration and defrost, baking, packaging heat shrinking.

Product parameters：

Item	Color	fabric weight(g/m)±3%	Total weight(g/m)±5%	Tensile Strength(N/5cm)±5%		mesh(mm)
Item	Color	fabric weight(g/m)±3%	Total weight(g/m)±5%	warp	weft	mesh(mm)
6001	beige	367	440	1800	1650	1*1
6001B	black	367	440	2400	1600	1*1
6003	black	395	545	1350	1700	4*4
6004	beige	395	545	1350	1700	4*4
6007K	yellow	417	570	3200	2300	4*4
6008	brown	414	570	1800	3000	4*4
6008S	brown	470	630	2000	3000	4*4
6012	black	470	630	1800	3000	4*4
6010K	yellow	247	410	3300	2050	4*4
6013	beige	306	460	1400	1000	10*10
6014	beige	307	440	1500	1100	0.5*1
6015	beige	416	520	2000	1450	2*2.5
6016(round)	Yellow MeshJoint	417	615	3000	2000
6016(square)	Yellow MeshJoint	410	580	1900	4000
6018	beige	490	735	2000	4000	4*4
6019	beige	620	890	2300	4000	4*4
6032	Medium White	420	710	2500	3000	4*4
6033	White	595	830	3500	3500

We select fine glassfiber and Kevlar as basic weaving material, coated with excellent PTFE resin to make it into various PTFE open mesh conveyor belts.
