Description:

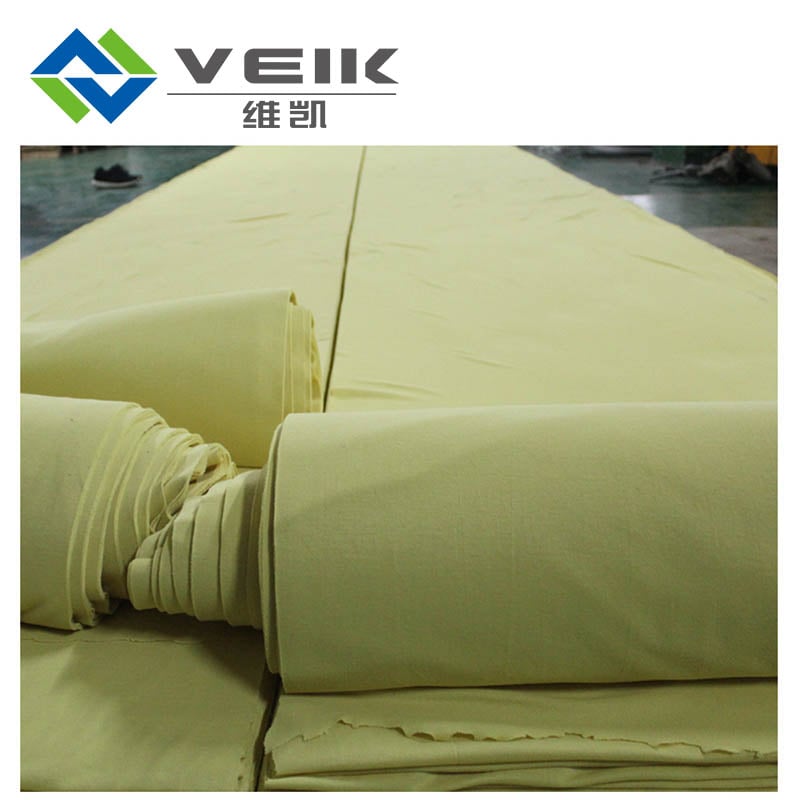

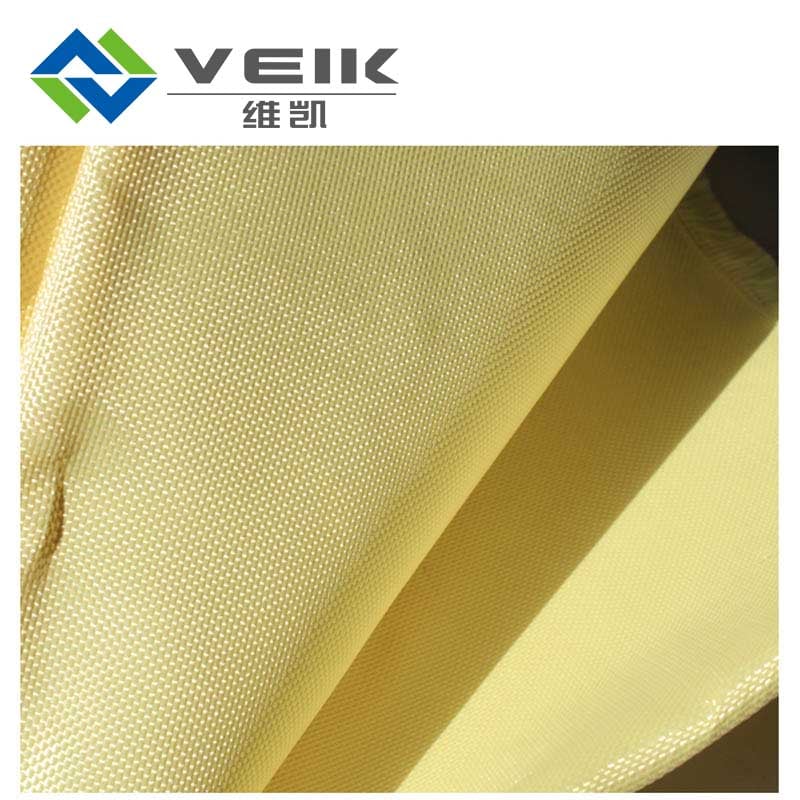

Aramid thread is a high-strength, lightweight fiber. It has good features on high temperature, high strength, good toughness, smoke-free, corrosion-resistant, anti-slip and so on. Our aramid cloth and conveyor belt is composite of imported high-strength aramid thread as the substrate, with advanced equipment and technology, it is coated by high-quality PTFE resin. It has been greatly improved when making various mesh fabric and conveyor belt on temperature resistance, strength compared to traditional fiberglass materials.
Application:
Industrial conveyor belt, dying, microweave dry.
Features:
High strength, lightweight fiber, Anti-high temperature, good tenacity,smoke-free,orrosion-resistant, anti-slip
Usage:
Kevlar thread, kevlar cloth, kevlar belt
| Weave | Demsity(g/m²) | Yarn | Yarn count/10cm | Thickness（mm) | Width | ||
| Warp | Weft | Warp | Weft | ||||
| Plain | 50 | 200D | 200D | 11.3 | 11.25 | 0.09 | 1 |
| 60 | 200D | 200D | 13.7 | 13.7 | 0.1 | ||
| 80 | 400D | 400D | 9 | 9 | 0.13 | ||
| 100 | 400D | 400D | 11.3 | 11.25 | 0.17 | ||
| 120 | 400D | 400D | 13.5 | 13.5 | 0.19 | ||
| Twill | 120 | 400D | 400D | 13.5 | 13.5 | 0.19 | |
| Plain | 120 | 1000D | 1000D | 6 | 6 | 0.22 | |
| 155 | 1000D | 1000D | 7 | 7 | 0.24 | ||
| 155 | 1000D | 1000D | 7 | 7 | 0.24 | ||
| 178 | 1000D | 1000D | 8 | 8 | 0.25 | ||
| 200 | 1000D | 1000D | 9 | 9 | 0.26 | ||
| Twill | 220 | 1000D | 1000D | 10 | 10 | 0.28 | |
| Plain | 167 | 1500D | 1500D | 5 | 5 | 0.22 | |
| 185 | 1500D | 1500D | 5.5 | 5.5 | 0.22 | ||
| 200 | 1500D | 1500D | 6 | 6 | 0.26 | ||
| Twill | 200 | 1500D | 1500D | 6 | 6 | 0.26 | |
| Plain | 240 | 1500D | 1500D | 7 | 7 | 0.29 | |
| Twill | 240 | 1500D | 1500D | 7 | 7 | 0.29 | |
| Plain | 268 | 3000D | 3000D | 4 | 4 | 0.38 | |
| 300 | 3000D | 3000D | 4.5 | 4.5 | 0.42 | ||
| Twill | 300 | 3000D | 3000D | 4.5 | 4.5 | 0.42 | |
| 420 | 3000D | 3000D | 6.3 | 6.3 | 0.58 | ||
