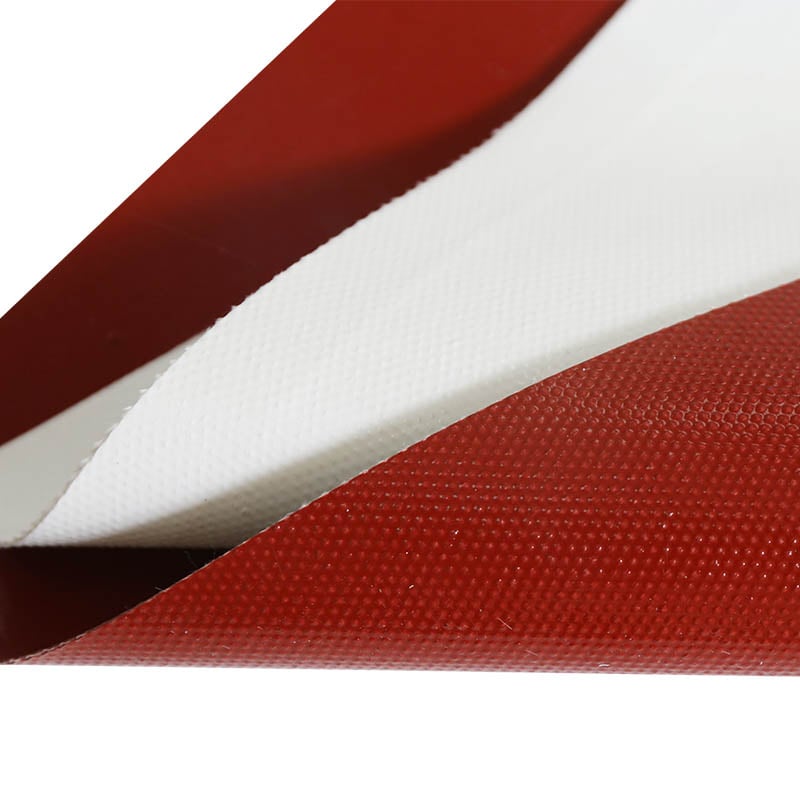

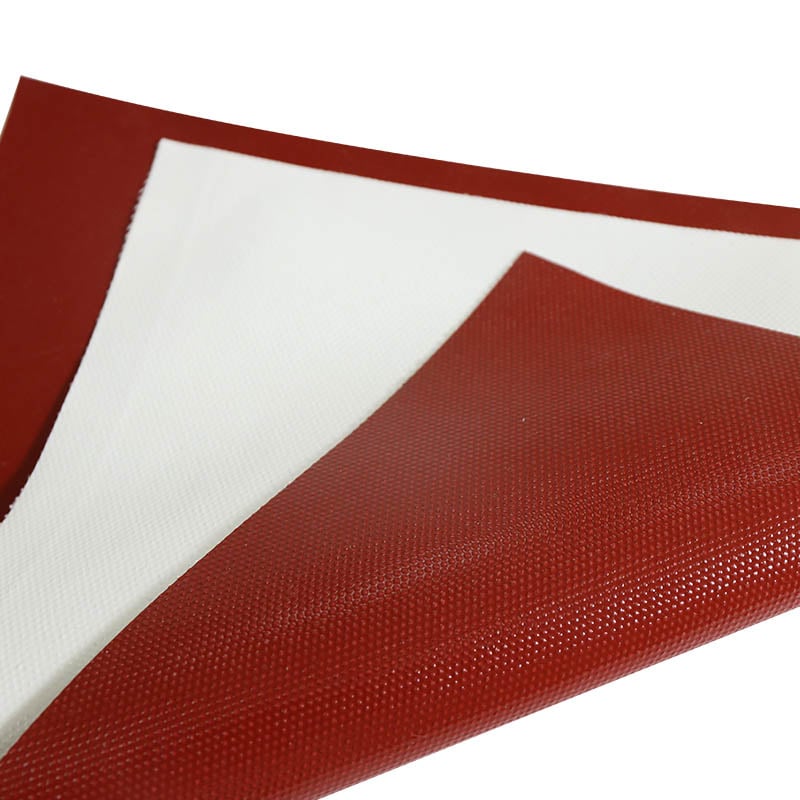

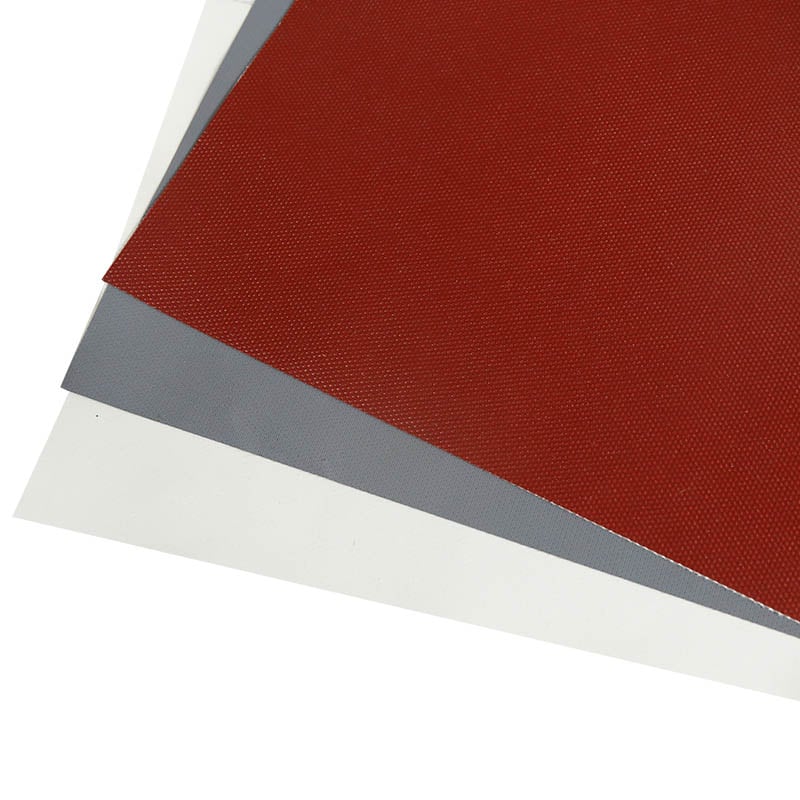

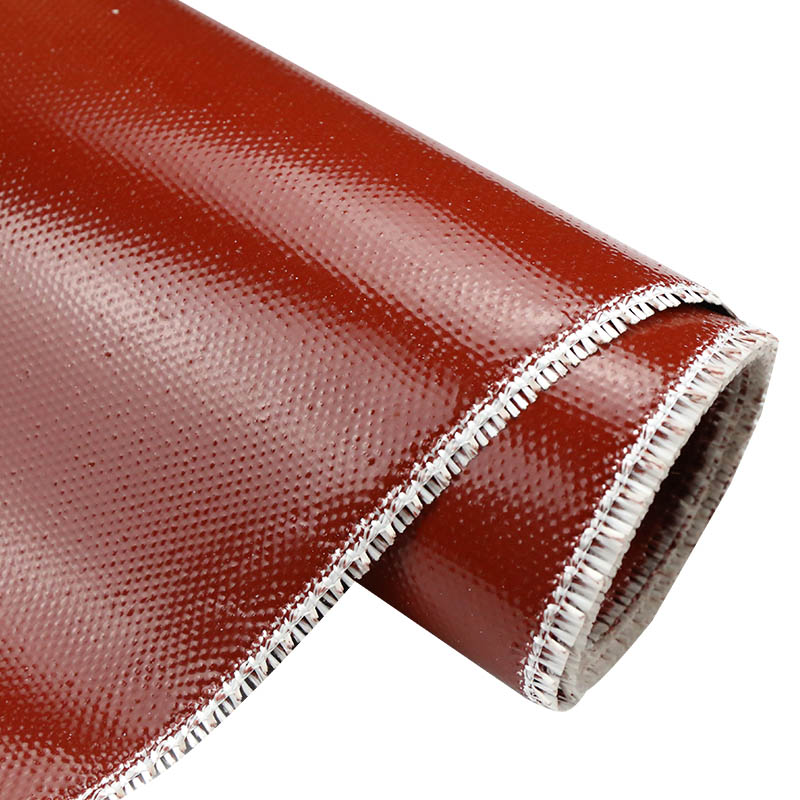

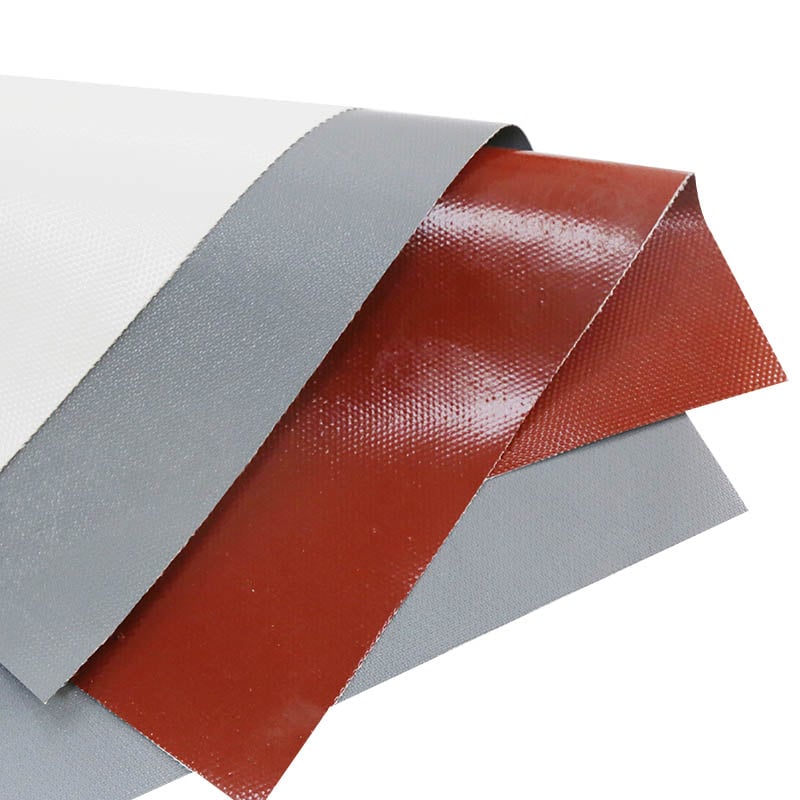

Silicone Coated Fiberglass Fabric
Product Performance：
1. Excellent resistance to high and low temperature, good thermal insulation performance;
2. high strength, both soft and strong
3.good chemical corrosion resistance, oil resistance and waterproof;
4. heat and weathering resistance, resistant to ozone, oxygen, light, etc.;
5.with high insulation performance, dielectric constant 3-3.2, breakdown voltage 20 ~ 50KV / MM.
Product Application：
– Welding & Burning Safety Blankets & Curtains
– Stress Relieving Insulation
– Controlled Cool Down Blankets
– Furnace High Temperature Insulation
– Furnace Curtains
– Expansion Joints
– Flange & Valve Covers
– High Temperature Composites
– Thermocouple Insulation
Product parameters：
| ltem No | Coaling | Thickness(mm) | Fabric weight(g/mǐ)±3% | Tensile Sirength(gm)±5% | Tensile Strength(N/5cm)±5% | |
| Warp | Weft | |||||
| 5025 | Single Side | 0.25±0.01 | 200 | 200 | 1000 | 850 |
| Double Side | 1200 | 1000 | ||||
| 5030 | Single Side | 0.29±0.01 | 250 | 250 | 1400 | 1100 |
| Double Side | 1500 | 1200 | ||||
| 5035 | Single Side | 0.35±0.01 | 290 | 290 | 1500 | 1250 |
| Double Side | 1550 | 1300 | ||||
| 5040 | Single Side | 0.40±0.02 | 335 | 335 | 1600 | 1400 |
| Double Side | 1700 | 1500 | ||||
| 5045 | Single Side | 0.45±0.02 | 380 | 380 | 2200 | 1800 |
| Double Side | 2300 | 1900 | ||||
| 5050 | Single Side | 0.50±0.02 | 535 | 535 | 2500 | 2000 |
| Double Side | 2800 | 2300 | ||||
| 5060 | Single Side | 0.60±0.02 | 575 | 575 | 2900 | 2400 |
| Double Side | 3000 | 2500 | ||||
| 5080 | Single Side | 0.80±0.02 | 790 | 790 | 3200 | 2600 |
| Double Side | 3300 | 2700 | ||||
| 5100 | Single Side | 0.99±0.03 | 850 | 850 | 340 | 280 |
| Double Side | 3500 | 3000 | ||||
